BIBUS SK representative of Hydraforce built-in (cartridge) valves in Slovakia

HydraForce was founded in 1985 near Chicago. Since its inception, HydraForce has continued to be a private company that has expanded to several manufacturing sites in North America, Europe and Asia, with a network of 120 distributors around the world.

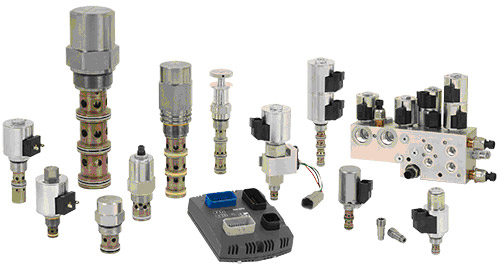

HydraForce offers one of the most comprehensive series of high-quality hydraulic built-in valves for mobile and industrial applications. It designs and manufactures high performance valves to meet almost all of the machine design needs in the 0.4 to 530 l / min flow range. The built-in HydraForce valves are designed to accommodate a wide range of commonly used valve cavities.

HydraForce also offers electronic controllers that are robust, reliable and optimized for easy and fast integration into the electro-hydraulic system.

HYDRAFORCE HYPERFORMANCE ™ - high pressure valves

HydraForce is pleased to announce the launch of the new HYPERFORMANCE rady range of high pressure valves.
These valves are designed to offer the highest operating parameters (highest transmitted power, high working pressure, low pressure drop) and allow the most reliable operation.

The comprehensive HyPerformance range includes more than 150 high-pressure cartridge valves that have been tested to meet strict NFPA T2.6.1 standards. Robust construction increases reliability - one-piece urethane seals eliminate support rings, simplifying installation and increasing reliability.
The properties of the hole (cavity) ensure the valves even in the most demanding applications - high tightening torque increases reliability in conditions of a difficult working cycle. And a modified cavity with a lower support surface increases strength and prevents bending during installation.

Simply put, they offer the highest level of performance and reliability in the industry.

FEATURES:

  • continuous working pressure 350 bar
  • short-term working pressure 420 bar (max. 10% of working cycle)
  • fatigue tested at 420 bar
  • flow rates up to 530 l / min
  • tested for corrosion for 1000 hours with salt spray
  • electromagnetic coils with IP69K protection
  • one-piece seals with high resistance. No support rings.
  • tested for 3-axis vibrations up to 20G RMS.

Pressure-balancedTM Suspension

Ride Control Is No Longer Optional

Compact wheel loaders, skid-steer loaders, and backhoe loaders may not be the biggest machines on the construction site, but they are often do most of the work. Due to their size, these machines can get into places and do things other construction machines cannot. For compact loaders, the lack of wheel suspension presents a challenge. Driving across a jobsite with a large elevated load, it can be difficult to keep from losing the cargo.

For small and mid-size loaders, the rough ride comes with the territory. We rely on the operator to adjust working habits to accommodate machine performance. This means working more slowly and deliberately, limiting tight turns, extending braking distances, and avoiding difficult terrain. This is a drag on productivity.

Cushioning the movement of the boom while traveling over difficult terrain is key to load stability and vehicle safety. An effective boom suspension system can act to prevent loss and shifting of the load, and a vehicle with a controlled load is easier to maneuver and safer to operate.

Keep your load in the bucket with HydraForce Pressure-balanced Boom Suspension

Advantages:

  • Keep the load in the bucket
  • Increase operator comfort
  • Increase working efficiency
  • Reduce wear on vehicle components
  • Increase travel speeds
  • Decrease braking distances
  • Adapt easily to any system
  • Standardized hardware available for proving
