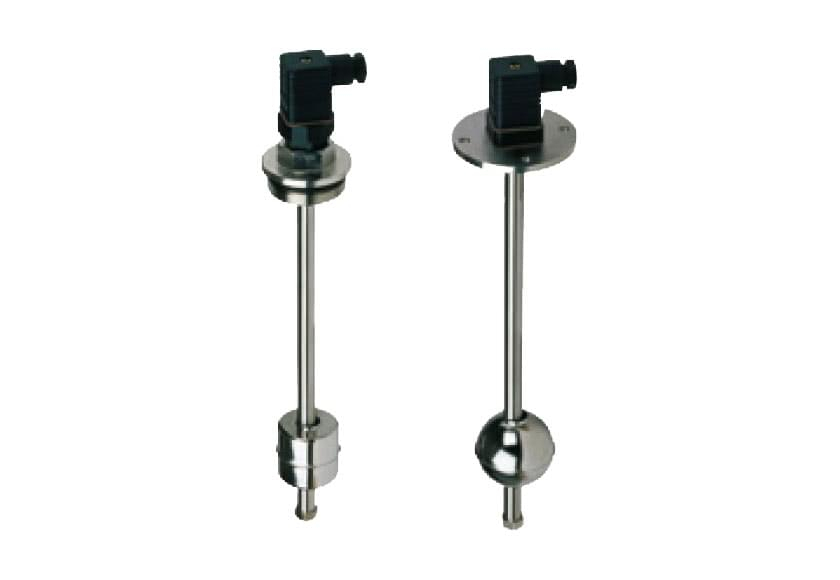

Jacob standard float switches

Float Switches Type LS 3
straight and angled

Material: PVC, PP, PA, PVDF, NBR, Stainless steel, brass
Process connection: M12, G1/8" to G1", NPT, Flange (round and oval), PG7, PG9, others on request
Electr. Connection: PVC- and Silicone-cable, M8- and M12-connector, Alu- and ABS-enclosure
Contacts: max. 4 NO or NC, max. 3 change over
Overall length: to 3.000 mm
Temperature range: -40°C to +150°C
Pressure: max. 15bar
Protection grade: to IP68
Options: integrated RTD or temperature switch on request

Float Switches Type LS 2
straight and angled

Material: PVC, PP, PTFE, Stainless steel, brass
Process connection: G1/2" to G2", Flange (round and oval), others on request
Electr. Connection: PVC- and Silicone-cable, M8- and M12-connector, Alu- and ABS-enclosure
Contacts: max. 4 NO or NC, max. 3 change over
Overall length: to 6.000 mm
Temperature range: -40°C to +150°C
Pressure: max. 20bar
Protection grade: to IP65
Options: integrated RTD or temperature switch on request
