Thomson T130 ball screw-driven precision linear actuator

Thomson T90/130 Special Purpose Actuators are designed for customers desiring to apply their own source of rotation and power. With a high-chromed extension tube, the actuator's push/pull operation is capable of high speed and high power to the load with the use of a Kollmorgen Servo Motor system.

  • Max stroke lengths of 2 m (6.6 ft)
  • Max thrust of 40 KN (8992 lbs)
  • Max velocity of .4 m/s (1.3 ft/s)
  • Ball screw with diameters of 40 mm (1.6 in) for T130
  • ±.050 mm (.002 in) repeatability
  • Optional limit switches
  • 100% duty cycle
  • Protection class IP65

Like other actuators in the PLA range, the T130 are designed for a long operating life at continuous 100 per cent duty cycles with a repeatability of 0.05mm. Positioning accuracy of 0.05mm is achievable for many applications. Fully preloaded systems are available on demand for higher precision.

Higher IP rating options and stainless steel versions are also available for harsher environments.

loading...

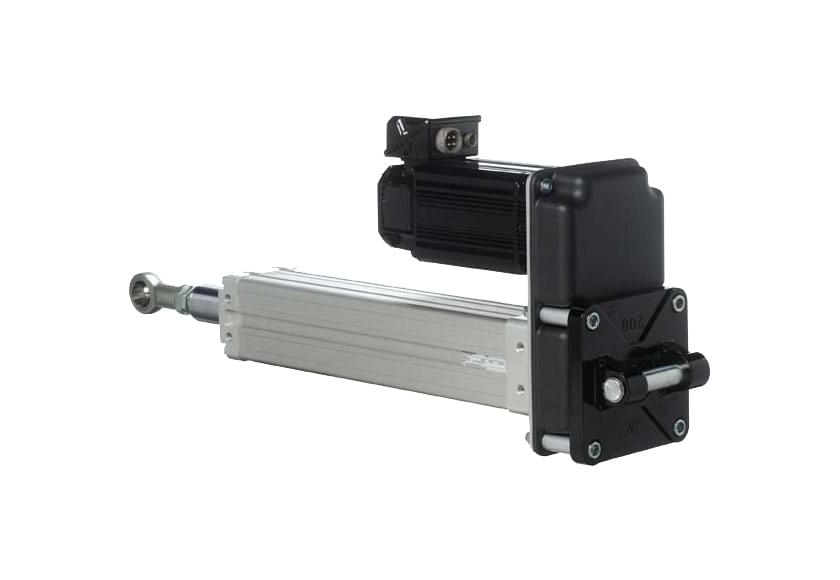

  • thomson t130 beltgearclevis servomotor 840x580
  • thomson t130 wormgear acmotor 840x580
