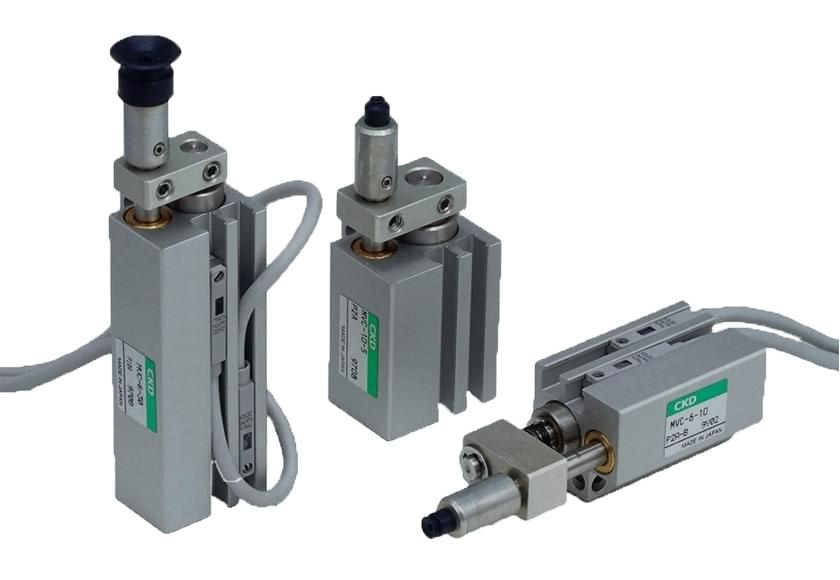

Small cylinder with vacuum pad MVC series

Leading to compact and space saving. 6, 10 mm bore ultra compact size. Optimum for sucking and transfer process of precise parts! Overall length of axial cylinder is reduced. This is optimum for suction or transfer process of electric parts and precise parts.

High precision non-rotating mechanism
Non-rotating guide rod equipped. This series is suited for the sucking and transfer of electric parts and precise parts, etc.

Space saving design
Work piece sucking section and vacuum passage are provided at guide rod. This enables short overall length of cylinder and results in dramatic space saving. Direct 2 surfaces mount Square shaped body enables direct mount on 2 surfaces.

A variety of sucking pad available
Installation onto the rod end can be performed by just one piece of wrench. A variety of socket type suck-ing pad are available including 2 to 10 mm outer diameter and 24 different types (options).

Miniature switch installation possible
F type switch can be integrated into the main body groove.
