Thomson DMD Lifting Columns

12, 24 and 6 Vdc - load up to 6800 N

DMD and DMA lifting columns are self-supporting, height adjustable units designed for a variety of industrial applications such as work tables, conveyors, loaders/unloaders, and many others. This height adjustment capability especially serves work environments that need to meet specific ergonomic requirements for a wide range of operator positions. Rugged and robust, these columns provide high load torque capability in an extruded anodized aluminium, self-supporting frame. Incorporated into the design is an Electrak actuator in both acme and ball screw versions.

  • Extruded anodized aluminium column
  • Internally restrained
  • Holding brake on ball screw units
  • Self-locking on acme units
  • Overload clutch for mid/end-of-stroke protection
  • Auto reset thermal switch motor protection
  • Safety nut on all ball screw models
  • T-slot grooves on entire profile
  • CE Certification
  • Maintenance free

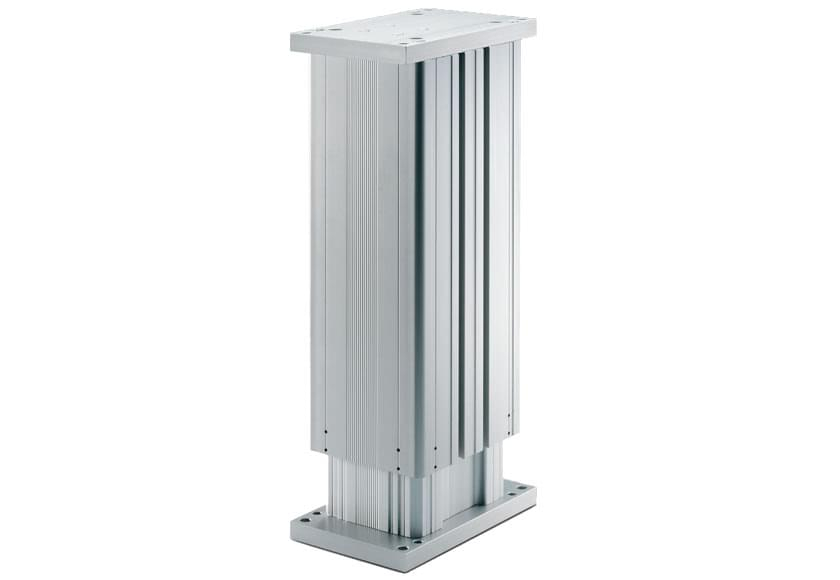

  • Thomson series DMD lifting columns (image 840x580px)
