Bansbach: linear actuator easyE-25

Bansbach easylift : The manufacturer of gas springs, shock absorbers, hydraulic microcylinders and linear motors is pleased to present its latest and smallest linear actuator easyE-25.
With a diameter of only 25 mm, its efficiency and elegant design make it suitable for almost every application.
easyE-25 was developed for applications with very limited space. It will only be available without integrated control, and an option with Hall sensors will be added by the end of the year.

easyE-25 parameters:

  • Stroke: 50, 100, 150, 200, 250mm
  • Cable: 1m, 2X0.50mm² (AWG20), Ø=4.8mm, black, Molex Mini-Fit Jr. 6 pin
  • Bending radius: 6x cable diameter
  • Material: The motor and cylinder are made of powder-coated aluminum
  • The piston is made of aluminum (ends made of PA)
  • Protection class: IP66 (standard)
  • Max. stat. load.:/ PA terminals: 1000N
  • Self-locking in compression is dependent on stroke.
  • Max. load is limited to 250N, for lift > 250mm
  • Working temperatures: -20°C to + 70°C
  • Storage: -40°C to + 70°C
  • Duty cycle: maximum 10% (or 2 min. operation and 18 min pause)
  • 24VDC (max 28VDC) - Current consumption at max. loads: 0.4A
  • 12VDC (max 14VDC)- Current consumption at max. loads: 0.7A
  • Dynamic load (tension, pressure): 110N, 310N and 370N
  • Speed at max. loads: 5, 2 and 1.5 mm/s

Bansbach Easylift takes over Danish electric actuator manufacturer Concens

Bansbach easylift GmbH takes over the Danish electric drive manufacturer Concens A / S in Esbjerg with retroactive effect to 1.1.2022 and sustainably strengthens the electric drive business.

Concens A / S has been developing and manufacturing customer-specific electric drives since 2003. For more than 5 years, Bansbach has been working very well with Concens as a co-owner and is now strategically expanding this cooperation through a full takeover. "Like everything in the Bansbach family business, this acquisition is a long-term investment that will benefit the production plant in both Lorch and Esbjerg," says Edgar Hahn-Bansbach, owner and CEO of Bansbach easylift.

The diversification of Bansbach easylift products will be further developed to complement the successful production of gas springs in a meaningful and sustainable way and to further strengthen and expand the plants in Denmark and Lorch in Swabia with more than 300 employees.

Anna Bansbach, the 4th generation of family business owners, adds: “Now the point is to make even better use of mutual know-how and synergies so that we can continue to grow together and continue to write long-term success stories for both companies. We look forward to working even more closely with our colleagues in Denmark, which will benefit our employees in Lorch in the long run. ”

Concens A / S, based in Esbjerg, Denmark, develops and manufactures electric drives in a particularly slim in-line design. As a result, the drives integrate very easily into applications in areas such as medicine / rehabilitation, special vehicle construction, industry, the navy, smart home or fitness, which are very similar to applications in which gas springs are already used. In Esbjerg, 30 employees currently work on the production, development and sale of these custom actuators.

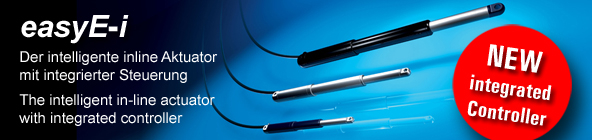

BANSBACH: New easyE-i Line actuator

The new system of linear motors with integrated control, built into the body of the actuator itself, offers new possibilities of application. It doesn't matter if it is a Modbus-RTU system, Plug and Play or synchronous control of several motors, the narrow design does not change anything. The engine forces (up to 10,000N with the easyE-60i) also remain the same.

Advantages of the system:

  • 3 sizes (with forces up to 10,000N).
  • Very compact design with integrated control.
  • Easy installation and maintenance-free design.
  • Software for easy setup.
  • Virtually adjustable stroke.
  • Integrated and adjustable current protection.
  • Integrated overheat protection.
  • MODBUS RTU to RS485 industrial interface.
  • Adjustable start / stop ramp.
  • Plug and Play solution with iConnect-Box.

The actuators are available in sizes 35, 50 and 60.

More information at https://www.bansbach.com/index.php/de/produkte/easye-line/easye-i
