Y01.NDP-80 - Size 3“ - Max. discharge volume 814 l/min

Air operated double diaphragm pumps are suitable for transferring hazardous, corrosive or abrasive liquids and used in a multitude of industries and applications. The pumps have an excellent wear resistance and are intrinsically safe (ATEX).

  • Port dimensions 3” BSPT
  • Air supply pressure 1.4 to 7 Bar
  • Discharge volume up to 814 l/min
  • Maximum dry suction lift 5.8 m
  • Diaphragm materials CR, NBR, TPO, PTFE, FKM, TPEE
  • Wetted materials PPG, Aluminium, Stainless Steel
loading...

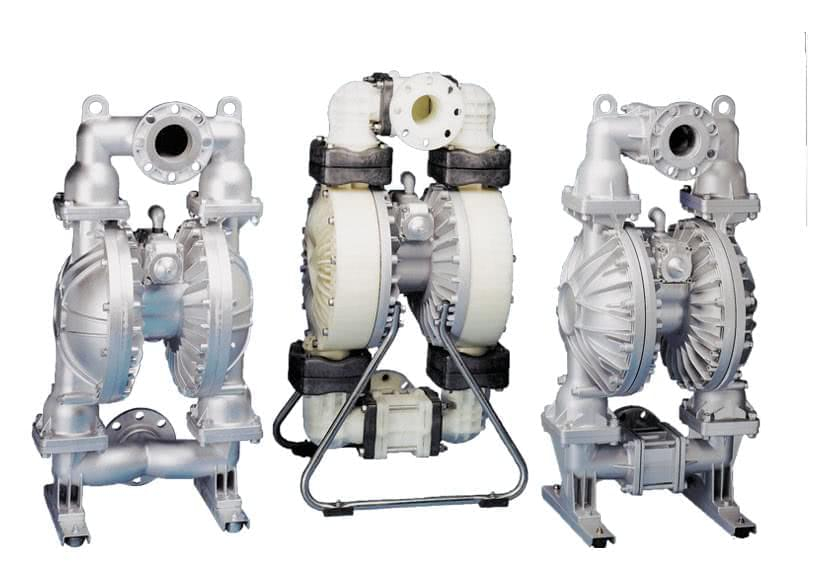

  • Y01 series NDP80 air operated diaphragm pump
  • Diaphragm pump cross-section
