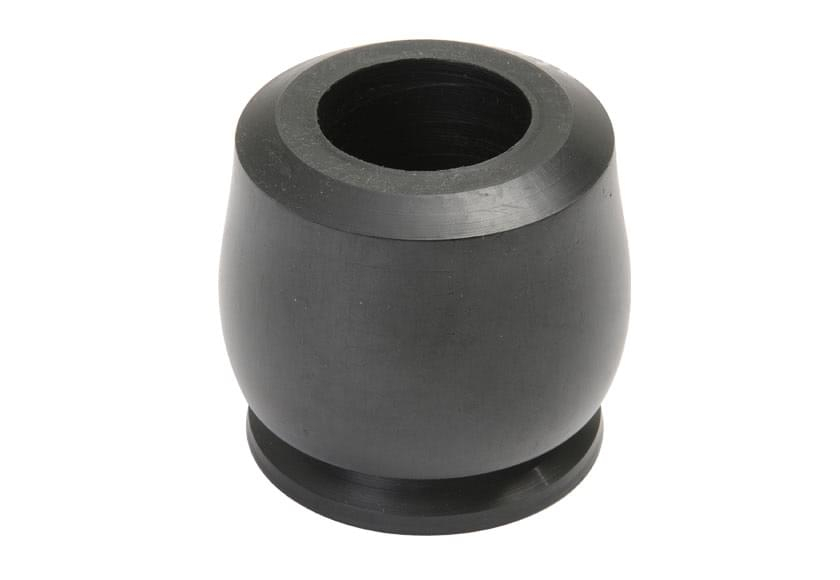

ACE TUBUS profile dampers

The profile dampers from the innovative ACE TUBUS series is a maintenance free, self-contained damping element made from a special co-polyester elastomer. As a result of the digressive damping characteristic it provides high energy absorption at the beginning of its stroke.
The excellent temperature characteristic of the material provides consistent damping performance over a temperature of -40 °C to 90 °C. If the moving mass does not have to stop in an exact datum position and it is not necessary to absorb 100% of the incoming energy, the low installed weight, the economic price and the long operating life of up to 1 million cycles make this an attractive alternative to hydraulic end position damping.

loading...
  • Ace TUBUS profile damper
