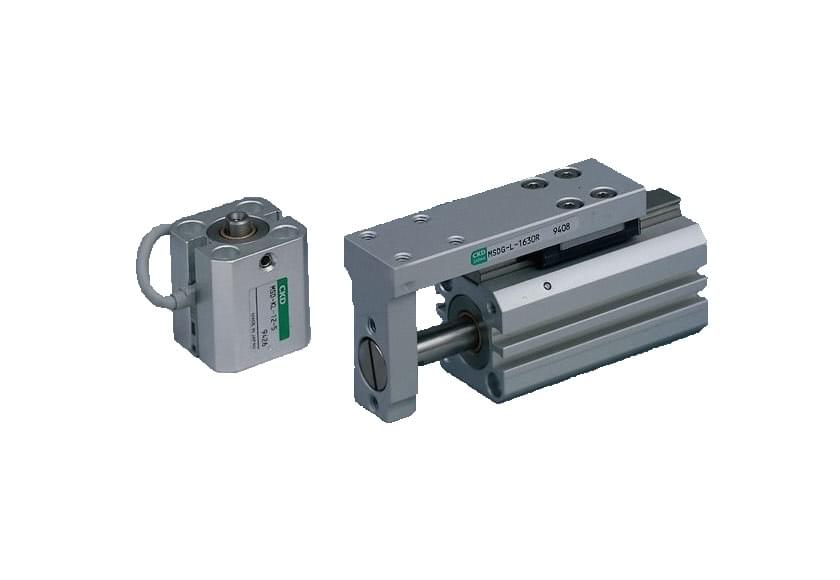

Small compact cylinder MSD/MSDG Series

Axial space saving structure and guided type
High precision guide is installed on short axial length MSD series. Meets high precision/high rigidity needs even in narrow space.

Long service life design (Approximate 4 times (CKD comparison))
Oil impregnated copper bearing at rod bearing dramatically improves abrasion resistance.

Optional piping direction is available
The piping can be selected from 2 way of main body side or main body bottom surface.

Direct 3-surface mounts
Square body enables direct mount on any cylinder surfaces. Through bolts or top installation is possible from top or bottom side. Common rear port enables sideways installations.

  • CKD series MSD compact cylinders
