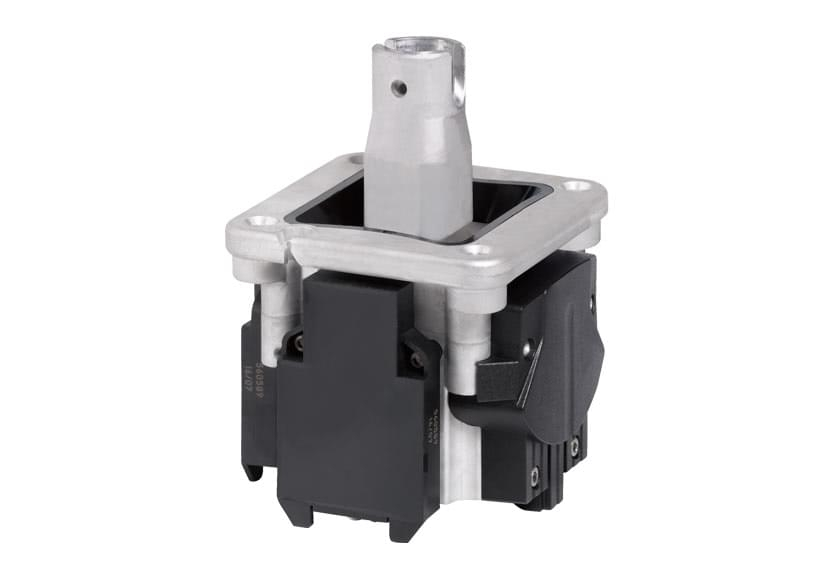

Heavy duty joystick

The angular operating range is ±25°. The operating principle is non-contacting:

  • analogue: rotating magnetic field over hall-sensor
  • digital: reed technique.

Short circuit-proof with analogue version (short circuit duration: unlimited).

J4 and J5 have a 6/8/10 or 12 PIN Molex 5557 connector. The electronic housing for CAN or PWM signals is fitted with an AMP 040 Multi-lock 8-pin connector. Alternatives on request.

The actuation force for each axis is 12 N (190 mm from the point of rotation). Optionally, 8 N and 16 N can be selected.

The static loading capacity (max. 190 mm from the point of rotation) for J5 is 1000 N in the x and y axis, and 700 N in the z axis. J4 can take 2000 N in the x and y axis, and 700 N in the z axis.

Mechanical life: 2x106 operations.
