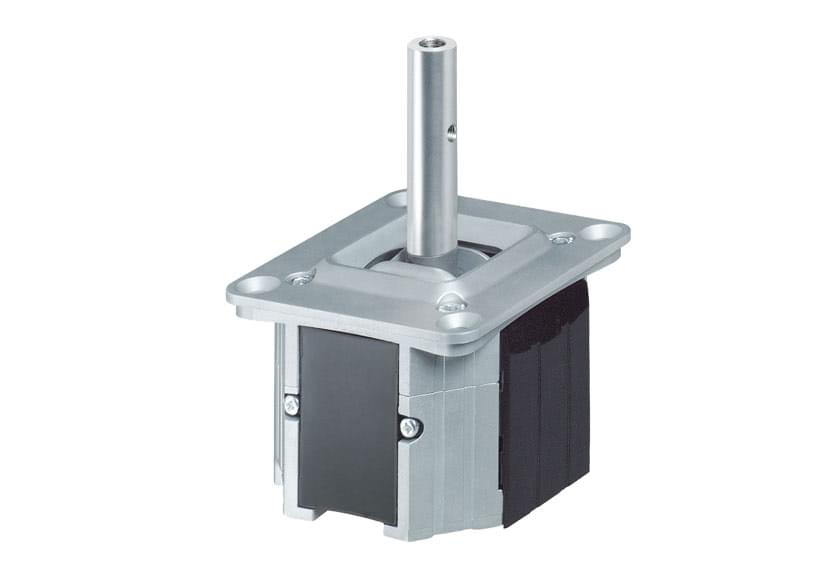

The angular operating range is ±25°. The operating principle is non-contacting:
- analogue: rotating magnetic field over hall-sensor
- digital: reed technique.
Short circuit-proof with analogue version (short circuit duration: unlimited). The
J6 has a 6/8/10 or 12 PIN Molex 5557 connector.
The actuating force can be adapted according to the knob. The static loading capacity (max. 150 mm from the point of rotation) is 750 N in the x and y axis, and 500 N in the z axis.
Mechanical life: 2x106 operations.
