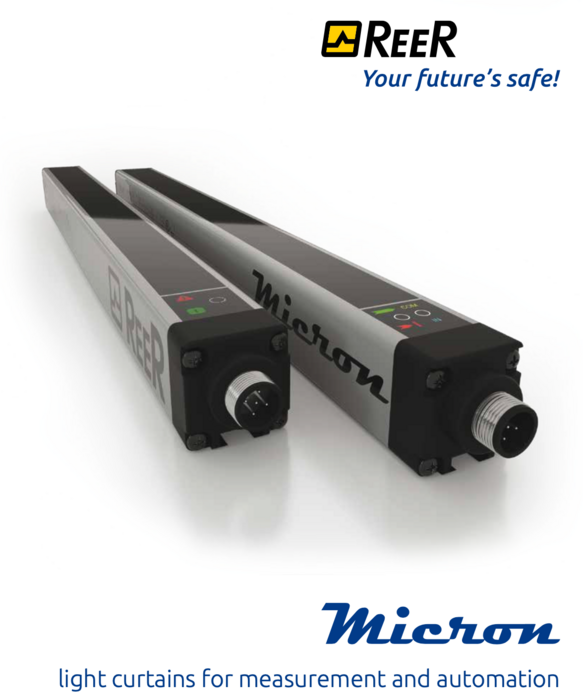

MICRON IOL light barrier from REER
Models with IO-Link protocol
Light curtains for industrial and civil applications where it is necessary to detect, measure and recognize objects.
What is IO-Link?
IO-Link is a point-to-point serial communication protocol. This protocol (based on an open standard) allows bidirectional data exchange from sensors and IO-Link Master.
The IO-Link master can transmit the received data via fieldbuses, networks or various buses, thus making the data available to other devices (eg PLCs or interfaces).
Each IO-Link sensor carries an IOD Device Description (IODD) file containing device information and features.
Configurable parameters via IO-Link Master
- Sync type
- Bearing
- Scanning cycles
- Data transfer mode
- Learning mode
| Operating temperature (°C) | -10 ... 55 |
| Power supply (VDC) | 24 ± 20% |
| Max. range (m) | 10 |
| Max. length of the connection cables (m) | 20 - Connection cables between light curtain and I O-Link Master |
| Height of controlled area (mm) | 150 ... 3000 |
| Beam spacing (mm) | 10, 30 |
