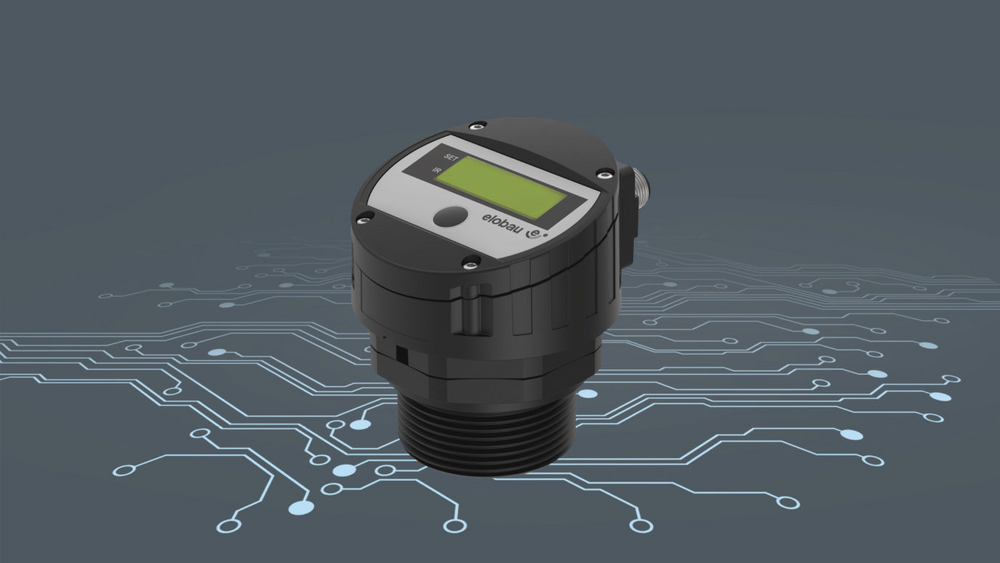

2u Industry - Level measurement using ultrasound from elobau gmbh.

  • Reliable measurement independent of transparency, gloss, surface texture and material color
  • Parameterization using the Teach-In button
  • Display to show the current fill level
  • Reach up to 1 m
  • Available mounting threads: G 1.5 ″, G 2 ″ 1.5 ″ NPT or 2 ″ NPT
  • Temperature range -20 ° C ... + 70 ° C
  • Current or voltage output
  • Up to 4 freely programmable switching points (high-side / low-side)
  • Swivel head

The 2U Industry ultrasonic sensor is ideal for reliable and accurate measurements in demanding industrial environments. This series offers a suitable solution for almost any type of application. Various analog output signals are available, which are complemented by up to four switching outputs. Quick and easy parameterization is performed using an easy-to-read display and a learn button. The swivel head offers additional flexibility when mounting in difficult installation situations.
