FIELDLED EVO: Brand new! from the company LED2WORK.

In the long term, FIELDLED EVO will replace FIELDLED II as the most powerful light for large-volume machines and systems to date. Illumination has been increased thanks to the latest LED technology and micro-prismatic anti-glare under safety glass. The robust aluminum cover was also completely redesigned. The recessed version of the FILEDLED EVO LED machine light is available in different lengths with a width of 96 mm or 150 mm. The lamp can also be easily attached without the lamp holder using the M5 screw channels on the back of the housing. FIELDLED EVO is connected to the 24V DC power supply of the machine. The connections - designed as polarized M12 connectors - are located at the back or front, depending on the variant.

YOUR BENEFITS:

  • Bright and homogeneous lighting, flicker-free without UV and IR components
  • Light emission across the entire width of the lamp
  • High resistance to many oils and cooling lubricants, resistant to chips
  • Single-layer safety glass with microprismatic glare control
  • Long-lasting light output because no oil or KSS is burned into the glass
  • Variant with front part and variant with rear connection via M12 A-coded
  • Fixing with screw channels on the back or with optional lamp holders

TECHNOLOGY:

  • Daytime white (5200-5700K) high-performance LED chips - industry standard
  • Beam angle 100° and color rendering Ra>85
  • Densely packed LED assembly inside - extremely powerful
  • thick tempered safety glass with anti-glare microprism and light shaping technology
  • Very high degree of protection IP67/IP69K and above-average LED lifetime >60,000h (L80/B10)
  • connection voltage 24V DC; Connection via M12 connector on the front or back
  • CE and ETL safety seal (www.intertek.de/elektronik/etl-zeichen)
  • Rear screw channels for M5 to mount, other mounting accessories are available separately
  • Maintenance-free, 36-month warranty
  • Developed and manufactured in Germany

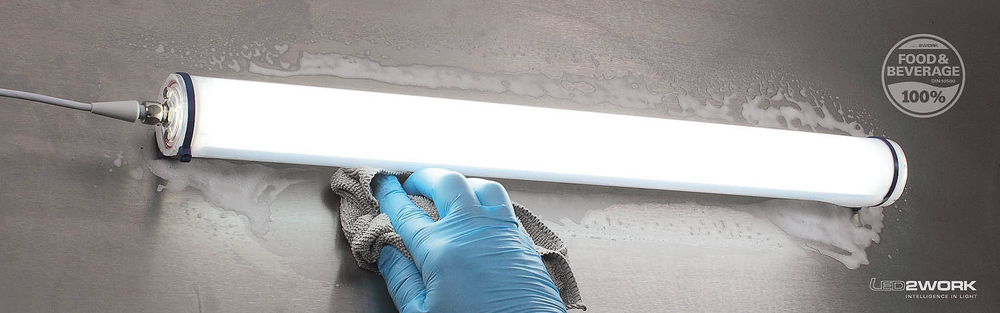

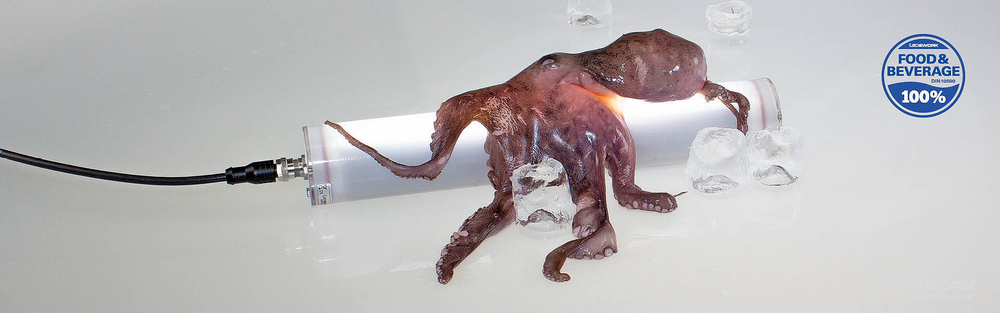

INROLED_50 Ecolab from LED2WORK

Led tube light

Clear, robust and opal white protective tube made of polycarbonate with Ecolab coating: The LED tube luminaire with a diameter of 50 mm and a dirt-repellent layer is particularly suitable for areas sensitive to hygiene in the food and beverage industry, but also in the pharmaceutical industry. industry or for the production of packaging. In the new version, the user has a choice of two connection variants. Thanks to its fully illuminated body, the LED lamp has already found its fans in building and home technologies, as well as in architecture. Industrial luminaire INROLED_50 Ecolab

High-power LED chips for white daylight 5200-5700K Beam angle 100 ° and color rendering Ra> 85

  • FDA-compliant materials;
  • M12 stainless steel connectors (suitable for F&B), each encapsulated in housing
  • Body: Protective tube made of unbreakable opal white polycarbonate with sealed ends Protective tube completely coated with Ecolab Aluminum base body inside for optimal heat conduction No heat dissipation basic body Geometry of a tubular luminaire Ø50 mm in 3 standardized lengths
  • Tested impact resistance IK09 high light output and luminous flux of the bulb up to 131 lm / W, depending on the version Reflector inside for even light distribution and light intensity compensation Very high protection class IP67 / IP69K and long service life of LED bulbs
  • DC version: Connection voltage 24V DC via M12 connector, with A and ETL coding AC version: Connection voltage 220 - 240 V p. Via M12 connector, S-coding.
  • Mounting with supplied suitable F + B holder made of detectable PP metal or with optional accessories Maintenance-free, 36-month warranty
  • Made in Germany Industrial light holder LED LED tube light | INROLED_50 - LED2WORK
