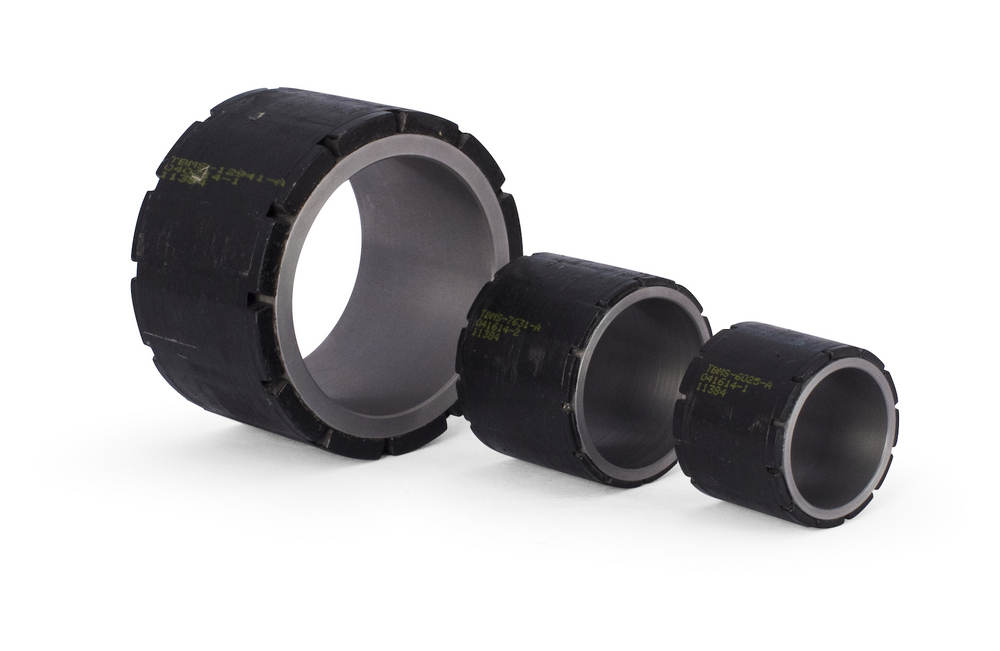

The Kollmorgen TBM Series Frameless Motor (Torquer Brushless Motor) is designed to be built directly into your machine using its own rotor support bearings. This series is designed for applications that require high performance in a small compact design with minimal weight and inertia. With a choice of standard engines - plus our ability to quickly and cheaply integrate the modifications developed together - you can choose a precisely matched engine that delivers the highest performance in robotic joints, medical robotics, sensor guards, guidance systems and other motion. critical applications.


  • Multiple frame sizes ranging from 60 mm (2.36 inches) to 129 mm (5.08 inches) OD
  • 24/48/96 VDC standard optimized winding
  • Possibility of continuous internal winding temperature of 155 ┬░ C
  • Stainless steel rotors for corrosion protection
  • Belt rotors
  • Laser-marked fittings
  • RoHS compliant
  • CE compatible at rated voltage
