Damper - adjustable in both directions
Adjustable damping in tension and compression?
No problem with this kind of damper…
This kind of adjustable damper allows independent control of the damping force in tension and extension directions.
The very simple adjustment is done by turning the control knobs, which are located outside the damper. It is also possible to change the damping force even when the damper is installed in the application.
Facts:
- Independent adjustment of the damping force in tension and compression
- Max damping force: 2500 N
- Operating temperature: 0°C to 65°C
- A mechanical limit stop approximately 2 mm before end of stroke is required
- A wide range of connecting parts can be found in the gas spring catalogt

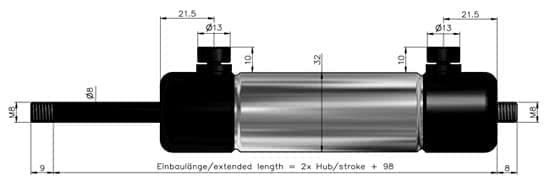

Bi-directional | Connecting Part Piston Rod | Connecting Part Cylinder | Model | Ø piston rod/ | Hub | Einbaulänge (min) | Index No.* |
DSED | B0 | N0 | - | X | 100 | 298 | 001* |
| See | - = Standard B = Special | X = 8/32 | 20-150 | 2x stroke +98 | *only necessary for repeating orders |
