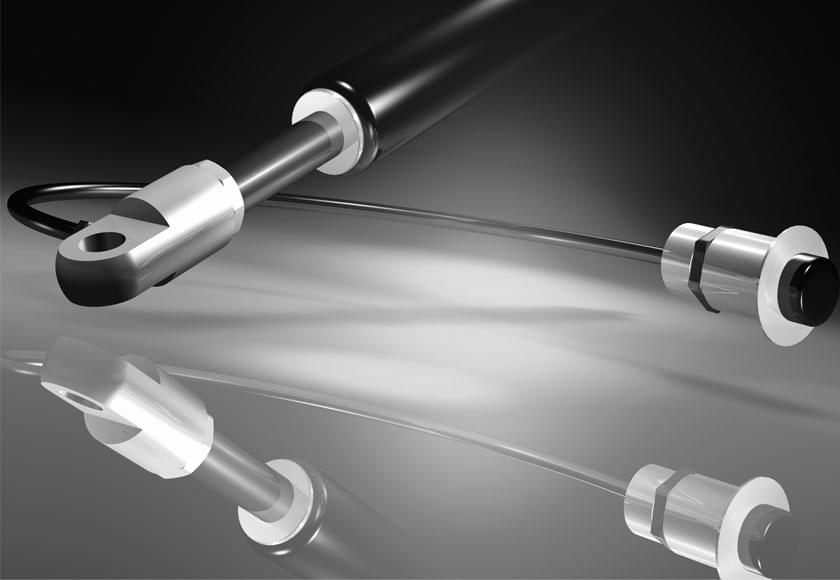

Lockable gas springs

Controlled pushing, lifting and adjusting including absolutely rigid locking in both directions.

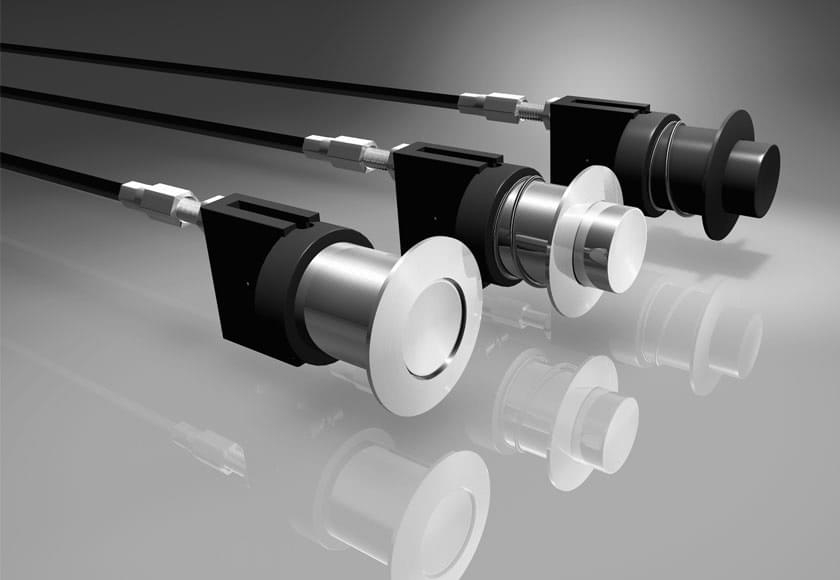

When considerable forces influence moveable construction parts, the reliable locking is important. The piston rod of the lockable easylift gas spring can be adjusted in every required position of the entire stroke by actuating the release pin. Depending on the occurring forces in your application, we can design your lockable easylift gas spring for different load limits. In this product line, the absolutely rigid locking easylift gas spring in both directions is a recognized innovation, worldwide.

Advantages:

  • Highest corrosion resistance achieved through powder coated cylinders and CeramPro treated piston rod surfaces
  • Minimal friction for the production of lowest extension forces
  • Best life cycles
  • Protection against vibration and light side forces
  • Integrated grease chamber
  • Low breaks away forces
  • Installation and storage in any position

Bansbach easylift GmbH has prepared its new main catalogue.

In it you will find the most up-to-date information about the production range of this company with a tradition longer than 100 years.

Bansbach offers compression gas springs (standard or exactly as required), tension gas springs, locking compression and tension gas springs, shock absorbers, stainless steel gas springs, accessories for gas springs (ends, fittings...), column systems, hydraulic pumps for adjustment heights (tables, beds...), mirko hydraulic rollers, electric linear motors...

THE SLIM LOCKABLE GAS SPRING

The new series are characterized by a particularly flat characteristic curve and an optimized progression. This means for the user that the ejection force of the gas spring is nearly the same at each stroke position. The force difference between the retracted and extended piston rod is therefore very small.

In addition, the small piston rod diameter also offers significant advantages with limited installation space. The required space is just 6mm for the piston rod. And also the cylinder diameter with minimum 15 mm does not need much space

We also manufacture this gas spring exactly as you wish. You get the stroke, the pushing force and the connecting parts, which you need for your application.

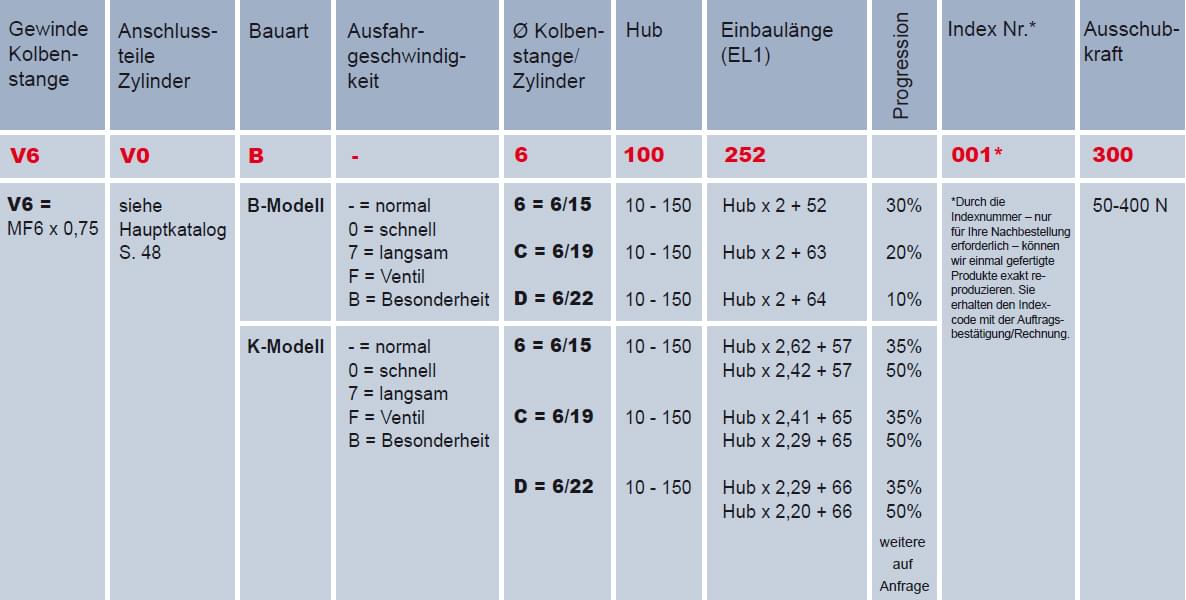

Configurator LOCKABLE GAS SPRINGS
