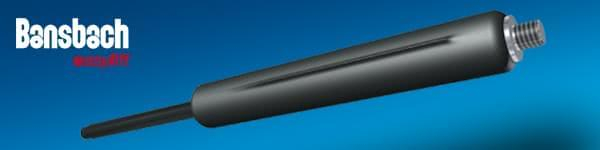

Bansbach easylift: Dynamic groove - Damping independently of the position

Individual damping, optimum speeds - no problems with the dynamic groove in the cylinder body

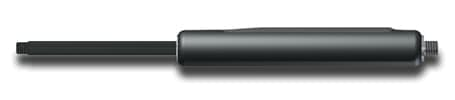

With the groove, it is possible to set different gas spring crash rates according to individual requirements. Damping is not ensured with a nozzle, as with standard types, but with a groove in the body of the spring cylinder. According to the requirements for a specific application, it is possible to choose the ideal intensity and damping characteristics.

Advantages:

  • Damping guaranteed at the end of the springs in each position of the gas spring (horizontal or piston up).
  • Controlled damping independent of the position of the gas spring.
  • Possible individual damping characteristics throughout the stroke.

A dynamic groove is available for 15, 19 and 22 mm roller diameters.
In order to properly configure the groove (according to the specific application requirements), more detailed information is needed ...


Connecting part piston rod


Connecting part
cylinder


Model


Push-out speed


Size


Stroke


Extended length (EL1)


Index*


Extension force F1 (N)

See
Catalog

See
Catalog

 G

Damping pull out
4= normal, normal end damping
5= normal, increased end damping
7= slow, normal end damping
8= slow, increased end damping
9= other variations

Damping push in
E= normal, normal end damping
F= normal, increased end damping
H= slow, normal end damping
I= slow, increased end damping
J= other variations

6= 6/15
C= 6/19
D= 6/22
0= 8/19
1= 8/22
2= 10/22

40-150
40-150
40-150
60-300
60-300
60-800

2x stroke+ 30
2x stroke+ 42
2x stroke+ 43
2x stroke+ 48
2x stroke+ 48
2x stroke+ 47


30-400
30-400
30-400
30-700
30-700
50-1300

Damping both directions
O= normal, normal end damping
P= normal, increased end damping
R= slow, normal end damping
S= slow, increased end damping
T= other variations

6= 6/15
C= 6/19
D= 6/22
0= 8/19
1= 8/22
2= 10/22

80-150
80-150
80-150
120-300
120-300
120-800

2x stroke+ 55
2x stroke+ 68
2x stroke+ 69
2x stroke+ 74
2x stroke+ 70
2x stroke+ 70

30-400
30-400
30-400
30-700
30-700
50-1300
