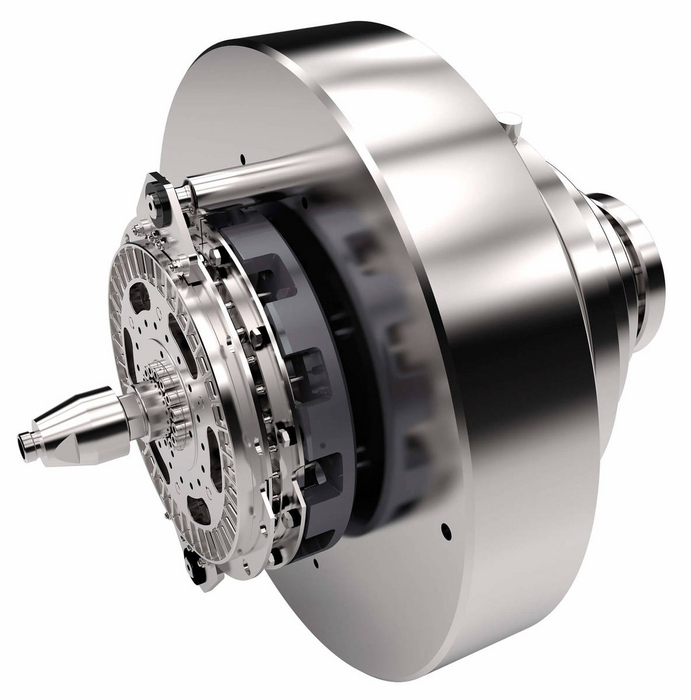

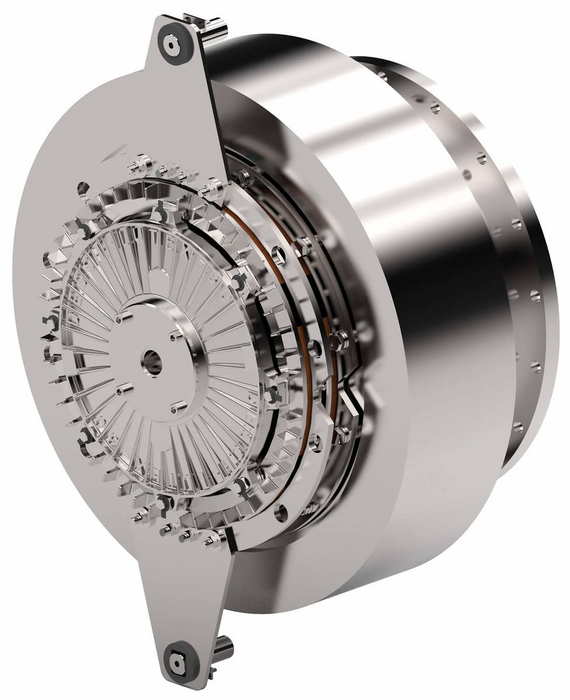

Complete press drive DESCH KA

The KA drive from DESCH replaces a complete spur gear or reduction gear in punching machines, eccentric and joint presses, etc., in which the power required for the machine is taken from a high-speed flywheel.

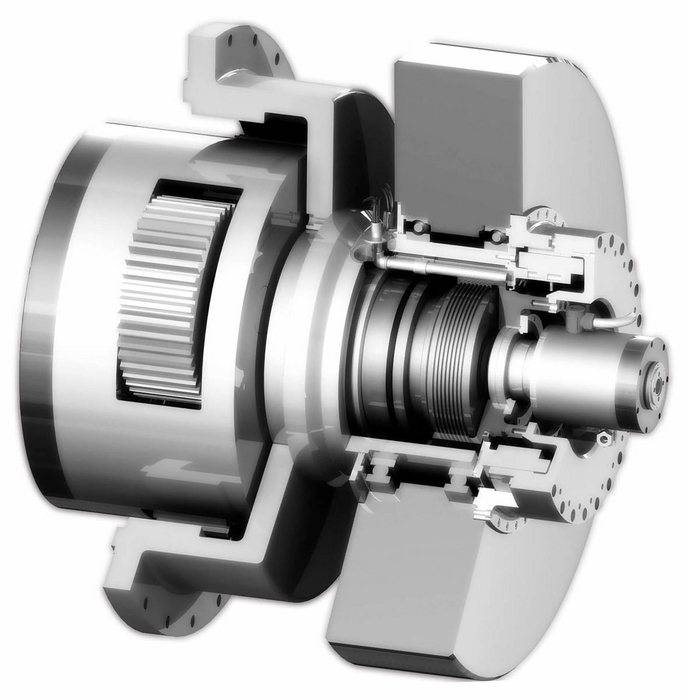

The ready-to-mount unit consists of a single-stage high-performance planetary gearbox, a flywheel for energy storage, as well as a pneumatically or hydraulically operated clutch/brake combination.

Torque range from 16 kNm to 160 kNm
Gear ratios 4 and 6
