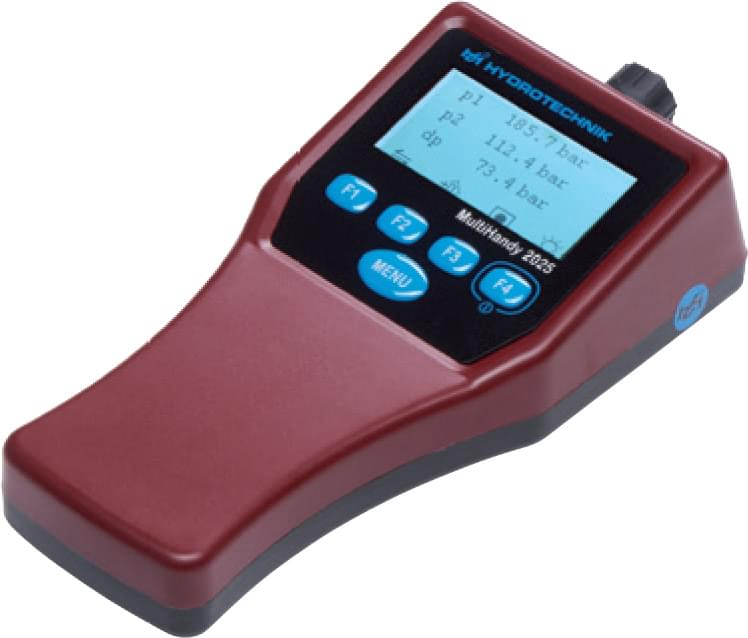

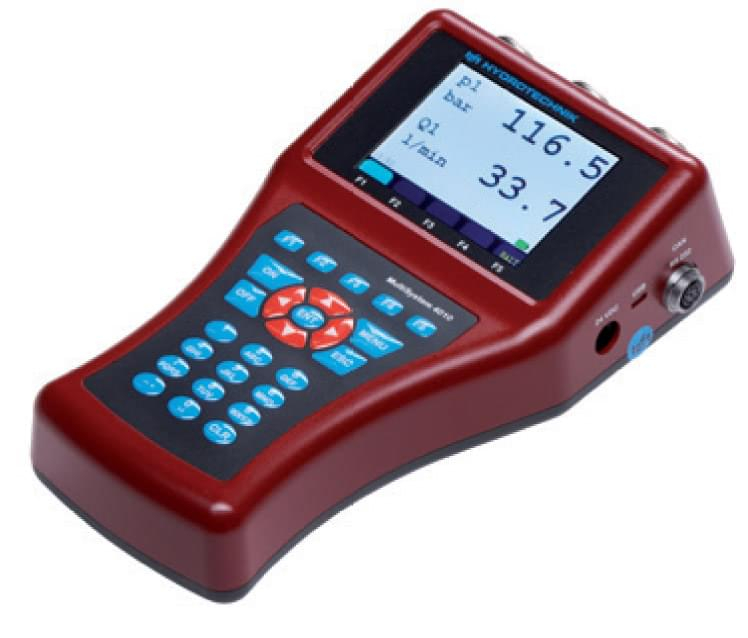

portable measuring devices with different performance profiles offers users a wide range of measurement options that are sufficient for the simplest of measuring operations for diagnostics and service to sophisticated data collection and evaluation.

The offer includes a complete range of measuring devices, sensors and accessories for the needs of measurement in hydraulics.

MINIMESS Xtreme®Pressure

Hydrotechnik has been working in the field of measuring the parameters of hydraulic systems up to a pressure of 630 bar for several years. However, the demand for applications with even higher pressure is constantly increasing. This is how the idea of ​​the MinimessXtreme®Pressure measuring neck for pressures up to 1000 bar was born.

Possible areas of use are:

  • oil and natural gas extraction
  • high-pressure release tool
  • test equipment
  • high-pressure pumps

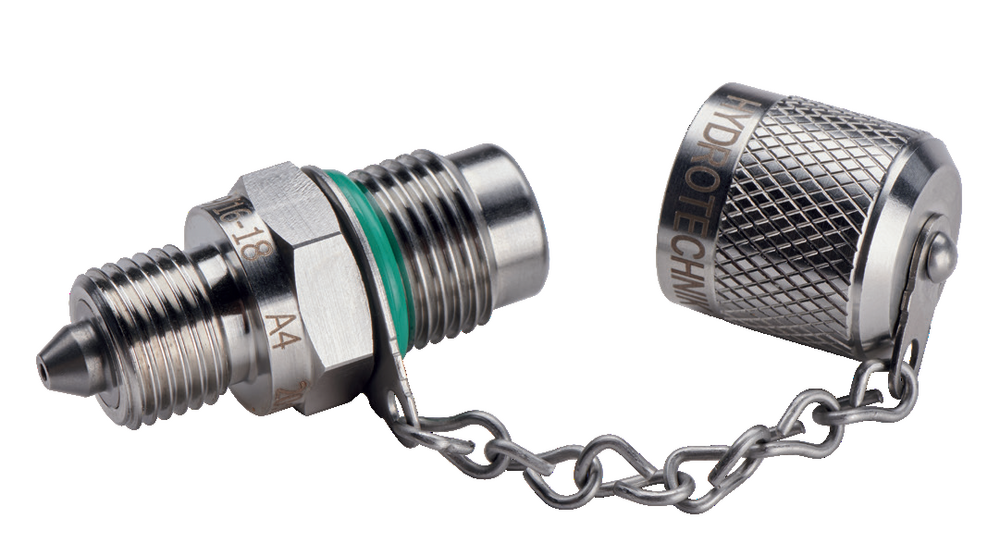

The MinimessXtreme®Pressure test point meets the requirement of connecting a measuring hose or other measuring devices up to a pressure of 700 bar by free hand - without the need for assembly tools.

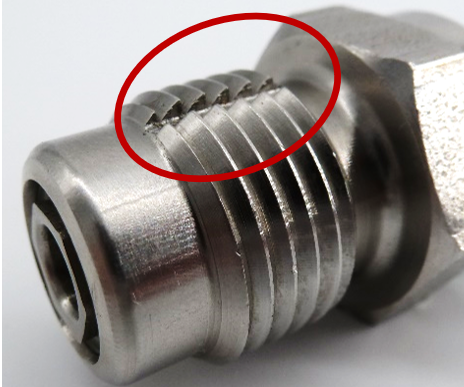

Easy connection is possible thanks to a special thread with a sawtooth profile. This profile and its special construction reduce the forces that are needed to connect and disconnect under high pressure. user safety.

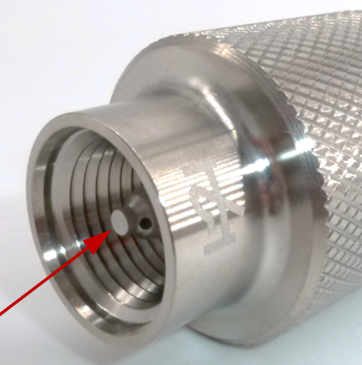

Likewise, the pin has a special construction that prevents its deformation at high pressures.
