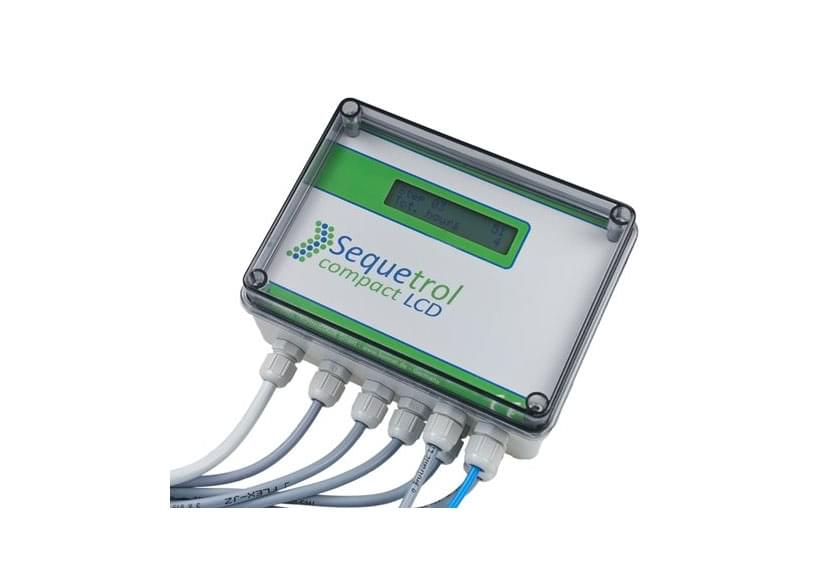

Sequetrol compact LCD
- Cables, Connectors: custom
- Characterization: Control with basic functions for air pumps & systems, easily programmable, fully sufficient for many cases
- GSM option in 1k pieces: not possible
- Programming, display texts: Free and clear programming using an Excel ® spreadsheet
- Menu structure: fixed
- Construction cycle biology: a limited extent
- Alarms: Power failure, compressed (. Optional, max / min.)
- Display: LCD, backlit 2 line x 16 character. Display e.g. Step Name, Time, Alarm, hours of operation, menu.
- LED: 0, only text messages
- Operation, buttons: For service, in the case, change the time step possible
- Power failure buzzer: yes
- Buffering in case of power failure: Commercial Photo Battery 6V 1/2AA
- Number of outputs: 5
- Type of outputs: relay 5A 250V AC compressor for 1x, 4x valves
- Relay life: min. 500 000 compressor cycles tested
- Solid State Relay: Option
- Tube Input - Output: none
- Current monitoring, the program evaluated: Option
- Protokolierung overcurrent: Option
- Monitoring internal fuse: no
- Number of Inputs: 1
- Type of inputs: for potential-free contact, such as float switch
- Pressure sensors: up to 1
- Pressure range: 0 - 50 kPa
- Compressor pressure monitoring: Option
- Water level measurement: input float, optional pressure measurement (pre-treatment or reactor)
- Clock and Calendar: Only Hours
- Event memory: only the last alarm
- Electrically operated point: no
- Data for electrical transport. Operating point: not available
- Communications: no
- Remote access and control: no
- Firmware Update: PC + programmer
- Update Software: PC + Cable
- Remote update of firmware and software: not possible
- Installation: 4 Screws
- Socket on the casing: no
- Available (series): yes
- Front cover customer-specific: yes
- Housing customized on request
