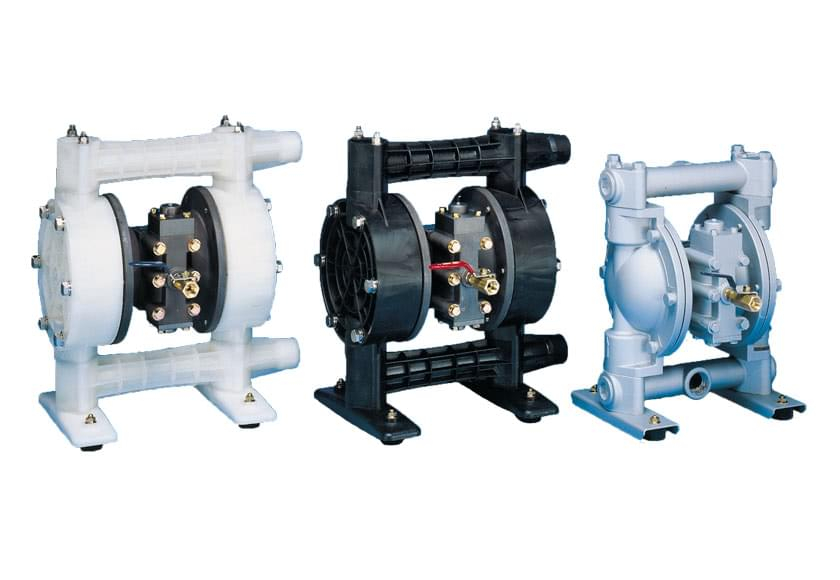

Y01.NDP-25 - Size 1" - Max. discharge volume 170 l/min

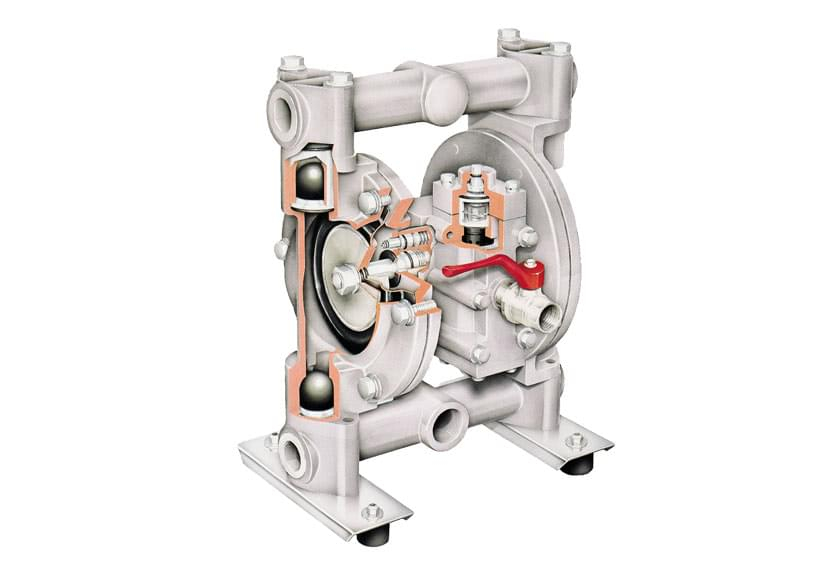

Air operated double diaphragm pumps are suitable for transferring hazardous, corrosive or abrasive liquids and used in a multitude of industries and applications. The pumps have an excellent wear resistance and are intrinsically safe (ATEX).

• Port dimensions 1” BSPT
• Air supply pressure 1.4 to 7 Bar
• Discharge volume up to 170 l/min
• Maximum dry suction lift 5.5 m
• Diaphragm materials CR, NBR, EPDM, TPO, PTFE, FKM, TPEE
• Wetted materials PPG, Aluminium, Stainless Steel, Cast Iron, PVDF
